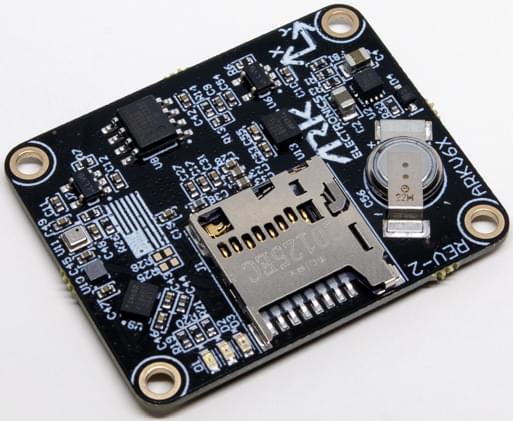

ARK Electronics ARKV6X

:::warning PX4 does not manufacture this (or any) autopilot. Contact the manufacturer for hardware support or compliance issues. :::

The USA-built ARKV6X flight controller is based on the FMUV6X and Pixhawk Autopilot Bus open source standards.

With triple synced IMUs, data averaging, voting, and filtering is possible. The Pixhawk Autopilot Bus (PAB) form factor enables the ARKV6X to be used on any PAB-compatible carrier board, such as the ARK Pixhawk Autopilot Bus Carrier.

:::info This flight controller is manufacturer supported. :::

Where To Buy

Order From Ark Electronics (US)

센서

Microprocessor

STM32H743IIK6 MCU
- 480MHz
- 2MB 플래시
- 1MB Flash

Other Features

FRAM
Pixhawk Autopilot Bus (PAB) Form Factor
LED Indicators
MicroSD Slot
USA Built
Designed with a 1W heater. Keeps sensors warm in extreme conditions

Power Requirements

5V
500mA
- 300ma for main system
- 200ma for heater

추가 정보

Weight: 5.0 g
Dimensions: 3.6 x 2.9 x 0.5 cm

핀배열

For pinout of the ARKV6X see the DS-10 Pixhawk Autopilot Bus Standard

시리얼 포트 매핑

UART	장치	포트
USART1	/dev/ttyS0	GPS
USART2	/dev/ttyS1	TELEM3
USART3	/dev/ttyS2	디버그 콘솔
UART4	/dev/ttyS3	UART4 & I2C
UART5	/dev/ttyS4	TELEM2
USART6	/dev/ttyS5	PX4IO/RC
UART7	/dev/ttyS6	TELEM1
UART8	/dev/ttyS7	GPS2

펌웨어 빌드

make ark_fmu-v6x_default
