# BlueROV2 (UUV)
The [BlueROV2](https://bluerobotics.com/store/rov/bluerov2/) is an
affordable high-performance underwater vehicle that is perfect for inspections, research, and adventuring.
PX4 provides [experimental support](index.md) for an 8-thrust vectored configuration, known as the _BlueROV2 Heavy
Configuration_.
## Де купити
[BlueROV2](https://bluerobotics.com/store/rov/bluerov2/) + [BlueROV2 Heavy Configuration Retrofit Kit](https://bluerobotics.com/store/rov/bluerov2-accessories/brov2-heavy-kit/)
### Відповідність двигунів/підключення
The motors must be wired to the flight controller following the standard instructions supplied by BlueRobotics for this
vehicle .
The vehicle will then match the configuration documented in
the [Airframe Reference](../airframes/airframe_reference.md#vectored-6-dof-uuv):
- **MAIN1:** motor 1 CCW, bow starboard horizontal, , propeller CCW
- **MAIN2:** motor 2 CCW, bow port horizontal, propeller CCW
- **MAIN3:** motor 3 CCW, stern starboard horizontal, propeller CW
- **MAIN4:** motor 4 CCW, stern port horizontal, propeller CW
- **MAIN5:** motor 5 CCW, bow starboard vertical, propeller CCW
- **MAIN6:** motor 6 CCW, bow port vertical, propeller CW
- **MAIN7:** motor 7 CCW, stern starboard vertical, propeller CW
- **MAIN8:** motor 8 CCW, stern port vertical, propeller CCW
## Basic Control Axes
For underwater vehicles, motion is defined in terms of body axes:
- **Surge:** forward/back motion - translation along the body X axis.
- **Sway:** left/right motion - translation along the body Y axis.
- **Heave:** up/down motion - translation along the body Z axis.
- **Yaw:** rotation about the (vertical) body Z axis.

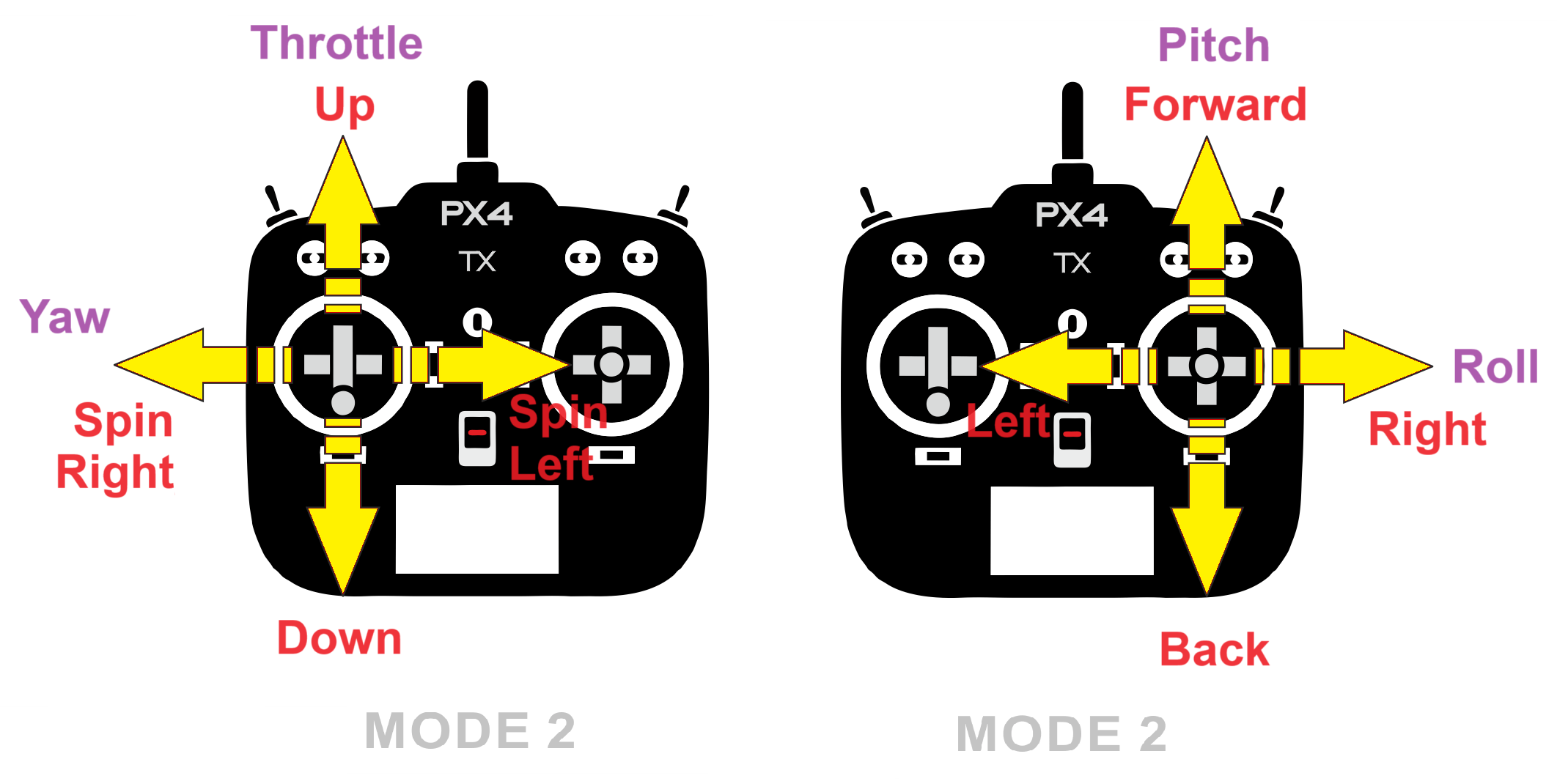

### Stick Mapping (Mode 2)
The mapping below illustrates the default joystick behavior:
- **Pitch stick (forward/back):** surge
- **Roll stick (left/right):** sway
- **Throttle stick (up/down):** heave
- **Yaw stick (left/right):** yaw
## Manual Modes
The following manual and assisted modes are currently supported on BlueROV2 Heavy:
| Режим | Опис |
| ---------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Manual | Direct manual control of thrust and yaw. |
| Stabilized | Manual control of thurst and yaw with roll/pitch stabilization. |
| Acro | Manual control of yaw-rate and direct thrust commands with roll/pitch stabilization. |
| Altitude | Manual control of x/y thrust and yaw. Control of height with PID, manually controlled by user. Keeps roll/pitch stabilized. |
| Положення | Controls x, y, z and yaw with position hold when sticks are released. Keeps roll/pitch stabilized. |
## Joystick Stick Mode
BlueROV2 supports two joystick mappings for manual control, selected using the
[UUV_STICK_MODE](../advanced_config/parameter_reference.md#UUV_STICK_MODE) parameter.
By default, `UUV_STICK_MODE` is set to `0`, which enables the UUV stick mapping intended for vectored underwater vehicles.
### UUV_STICK_MODE = 0 (default)
This mode is intended for normal BlueROV2 operation.
In `Manual`, `Stabilized`, and `Acro` modes, the sticks command:
- **Pitch stick:** surge - moving stick up -> moving forward, +X translation in body frame.
- **Roll stick:** sway - moving stick right -> moving sideways right, +Y translation in body frame.
- **Throttle stick:** heave - moving stick up -> moving upwards, -Z translation in body frame (note the Z axis points Down of the vehicle in PX4).
- **Yaw stick:** yaw - moving stick right -> yawing to the right, +Z rotation in body frame.
In this mode, roll and pitch are kept level rather than commanded directly.
### UUV_STICK_MODE = 1
This mode enables the legacy multicopter-style stick mapping for `Manual`, `Stabilized`, and `Acro` modes:
- **Throttle stick:** surge - moving stick up -> moving forward, +X translation in body frame.
- **Roll stick:** roll - moving stick right -> rolling to the right side, +X rotation in body frame.
- **Pitch stick:** pitch - moving stick up -> pitching down, -X translation in body frame (note signs are switched to follow PX4 standard).
- **Yaw stick:** yaw - moving stick right -> yawing to the right, +Z rotation in body frame.
This mode is mainly provided for compatibility with older setups and user preference.
## Конфігурація планера
BlueROV2 не йде з предвстановленою версією з PX4.
Вам потрібно:
1. [Install PX4 Firmware](../config/firmware.md#installing-px4-main-beta-or-custom-firmware)
2. [Set the Airframe](../config/airframe.md).
You will need to select the "BlueROV2 Heavy Configuration" as shown:
